Yanzeo SR681 8dbi Antenna UHF RFID Card Reader RS232/RS485/Wiegand Interface RFID Writer Reader
Yanzeo SR681 8dbi Antenna UHF RFID Card Reader RS232/RS485/Wiegand Interface RFID Writer Reader
- Price
- US $
159-179 /piece
- Model
- A-19
- Unit Price
Order Quantity Unit Price Delivery period 1 - 5 US $179.00 /piece 3 day 6 - 20 US $169.00 /piece 3 day 21 - 50 US $159.00 /piece 3 day
- Quantity
- piece
- is_customized:Yes
- Name:Slon
- Model Number:A-19

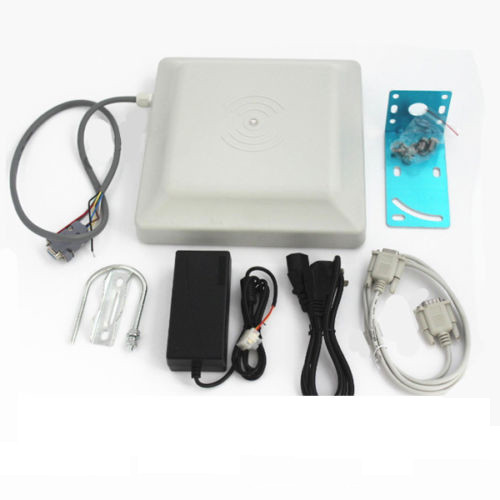

Middle-range UHF Integrated Reader 8dbi (RS232,RS485,Wiegand)
DEMO,SDK FREE
UHF RFID panel antenna 12dBi MMCX external antenna UHF reader Card Reader
Applications:
Logistics and warehouse management: goods flow, warehouse management and the flowing management of mail, parcels and luggage
Intelligent parking management: parking management and automatic charges
Productive lines management: production process fixed identify
Product counterfeit-proof inspection: using memory’s write-protect functions inside tags and identifying with true-false of products
Other fields: used widely in club management, libraries, students schools, consumption management, time management, dinner management and pool management
Frequency Range | 865-868MHZ/902-928MHZ |
|
Band Width | 26(MHz) | |
Gain | 5(dBi)/ 8(dBi)/ 12(dBi) | |
Beam Width E-Plane | 68(°) | |
Beam Width H-Plane | 65(°) | |
VSWR | ≤1.3/ ≤1.4 | |
Polarization | Circular polarization | |
Max Power | 100(W) | |
Impedance | 50(Ω） | |
F/B | >20(dB)/ >25(dB) | |
Connector | N-female/User specified | |
Dimensions | 225*180*40mm/ 225*225*30mm/ 450*450*45mm | |
Package | 250*190*60mm/ 390*290*110mm/ 600*480*110mm (Paper Carton) | |
Radome Material | ABS | |
Weight | 1.5kg/ 1.8kg/ 4.5kg (with bracket) | |
