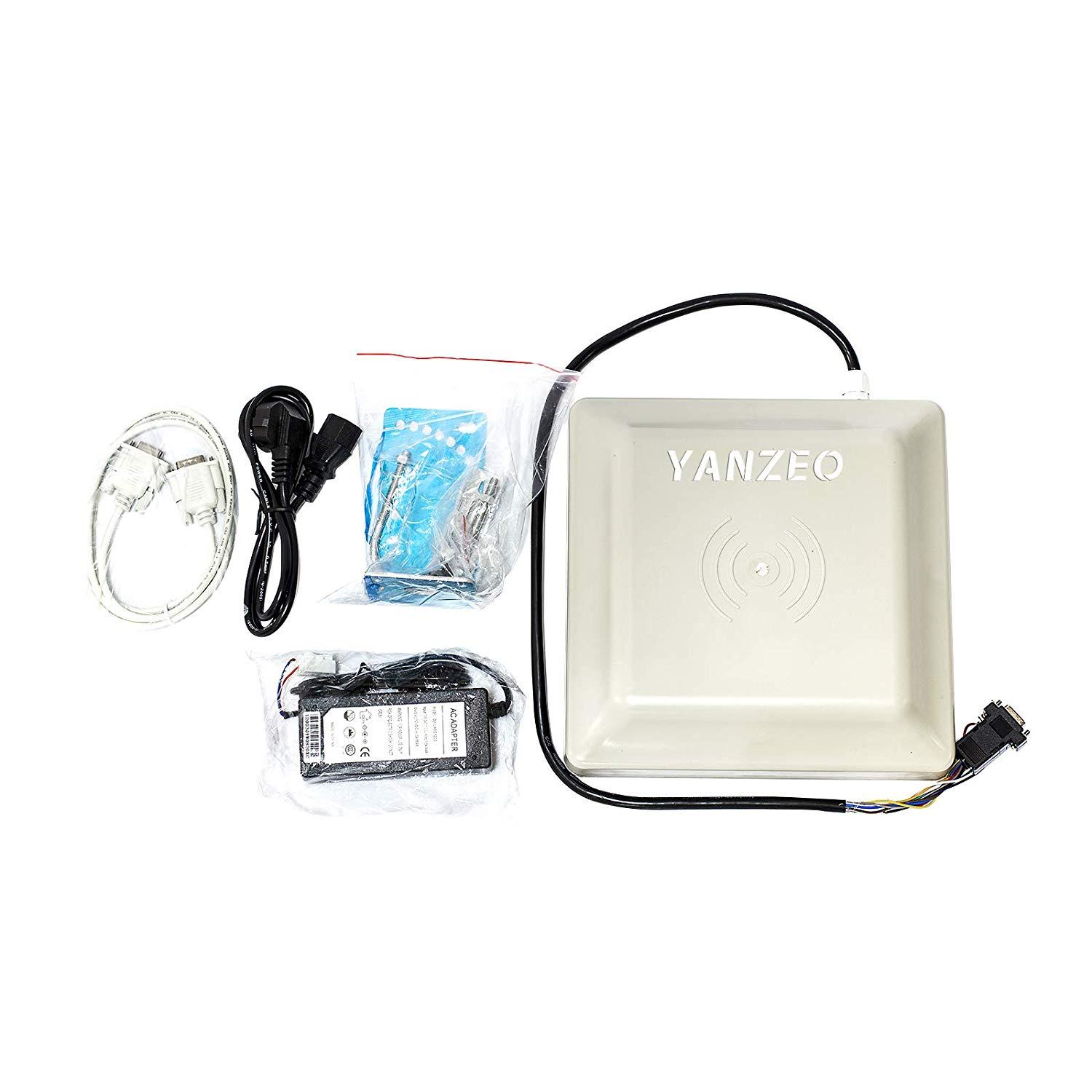

Yanzeo SR682 Internet UHF RFID Card Reader 6M Long Range,Integrated 8dBi UHF Far Field Antennar RFID Reader
Yanzeo SR682 Internet UHF RFID Card Reader 6M Long Range,Integrated 8dBi UHF Far Field Antennar RFID Reader
- Price
- US $
249-269 /piece
- Model
- A-07
- Unit Price
Order Quantity Unit Price Delivery period 1 - 5 US $269.00/piece 3 day 6 - 10 US $259.00/piece 7 day 11 - 20 US $249.00/piece 15 day
- Quantity
- Name:Yanzeo
- Model Number:SR682
UHF RFID Card reader 8m long range, 8dbi Antenna RS232/RS485/Wiegand Read 8M Integrative UHF RFID Reader
The UHF RFID Middle Range Reader is a high performance UHF integrated reader .Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 16 | V |
Operating Temp. | TOPR | -10~+65 | °C |
Storage Temp. | TSTR | -25~+75 | °C |
Electrical and Mechanical Specification
Under TA=25°C,VCC=+9V unless specified
ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
Power Supply | VCC | 8 | 9 | 12 | V |
Current Dissipation | IC | 350 | 650 | mA | |
Frequency | FREQ | 860 | 865~868 902~928 | 960 | MHz |
Effective Distance* | DIS | 300 | 500 | 600 | cm |
INTERFACE
ITEM | COMMENT |
Red | +9V |
Black | GND |
Yellow | Wiegand DATA0 |
Blue | Wiegand DATA1 |
Purple | RS485 R+ |
Orange | RS485 R- |
Brown | GND |
White | RS232 TXD |
Green | RS232 RXD |
Grey | Trigger input(TTL level) |
* Effective distance depends on antenna, tag and environment.
Pictures
Interfaces(RS232,RS485,Wiegand26/34)
